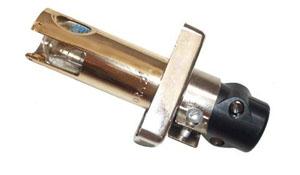

| QRA2系列火焰探测器-电眼
品牌：SIEMENS（西门子）
产地：德国
|
| 产品介绍 |
|
The flame detectors are used for the supervision of gas flames, yellow- or blue-burning oil flames and for ignition spark proving.
-
With this type of flame supervision, the UV radiation emitted by gas or oil flames is used to generate the flame signal.
-
The radiation detector consists of a UV-sensitive cell with 2 electrodes, which ignite when illuminated with radiation in the 190...270 nm range of the spectrum, thereby triggering a current in the flame detector circuit.
-
The UV cell does not respond to glowing firebrick in the combustion chamber, daylight or light from the boiler room illumination.
|
|
| 技术参数 |
| 主要参数 |
| UV单元平均寿命 |
10000小时（在50ºC） |
| 保护等级 |
IP40 |
| 重量 |
60g |
|
|
| 环境条件 |
| 运输环境 |
IEC 60 721-3-2 |
| 内部条件 |
class 2K2 |
| 机械条件 |
class 2M2 |
| 温度范围 |
-20...+60ºC |
| 湿度 |
<95% |
| 运行环境 |
IEC 60 721-3-3 |
| 内部条件 |
class 3K5 |
| 机械条件 |
class 3M2 |
| 温度范围 |
-20...+60ºC |
| 湿度 |
<95% |
| 不得进水 |
|
|
